From the Bench: Super 6309 (6309-7049)

This Seiko 6309-7049 was selected for a full mechanical service with targeted upgrades planned to improve longevity, usability, and reliability while preserving the character of the original watch. From the outset, the intent was to add a hacking mechanism, increase functional jewel count, and fit a more robust bracelet. Intake inspection confirmed degraded lume on both the hands and dial, requiring full re-lume as part of the service.

Scope of Work

Full movement disassembly and service

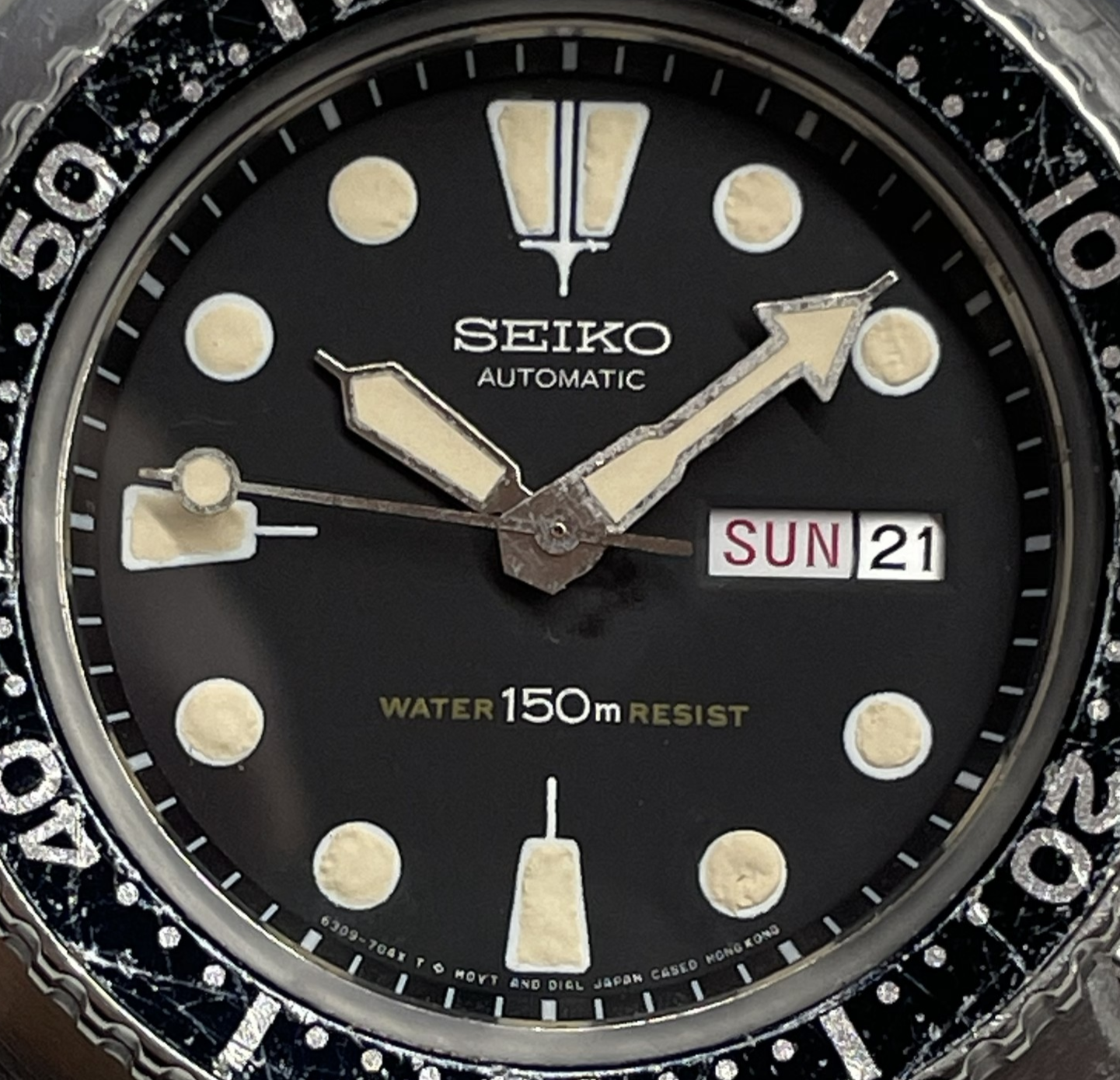

Complete hand and dial re-lume
Barrel arbor jewel upgrades
Additional jeweled components using 6306a parts (functional)
Hacking upgrade (6306a hacking lever and center wheel bridge)
Fitted Miltat bracelet installation

Bench Notes

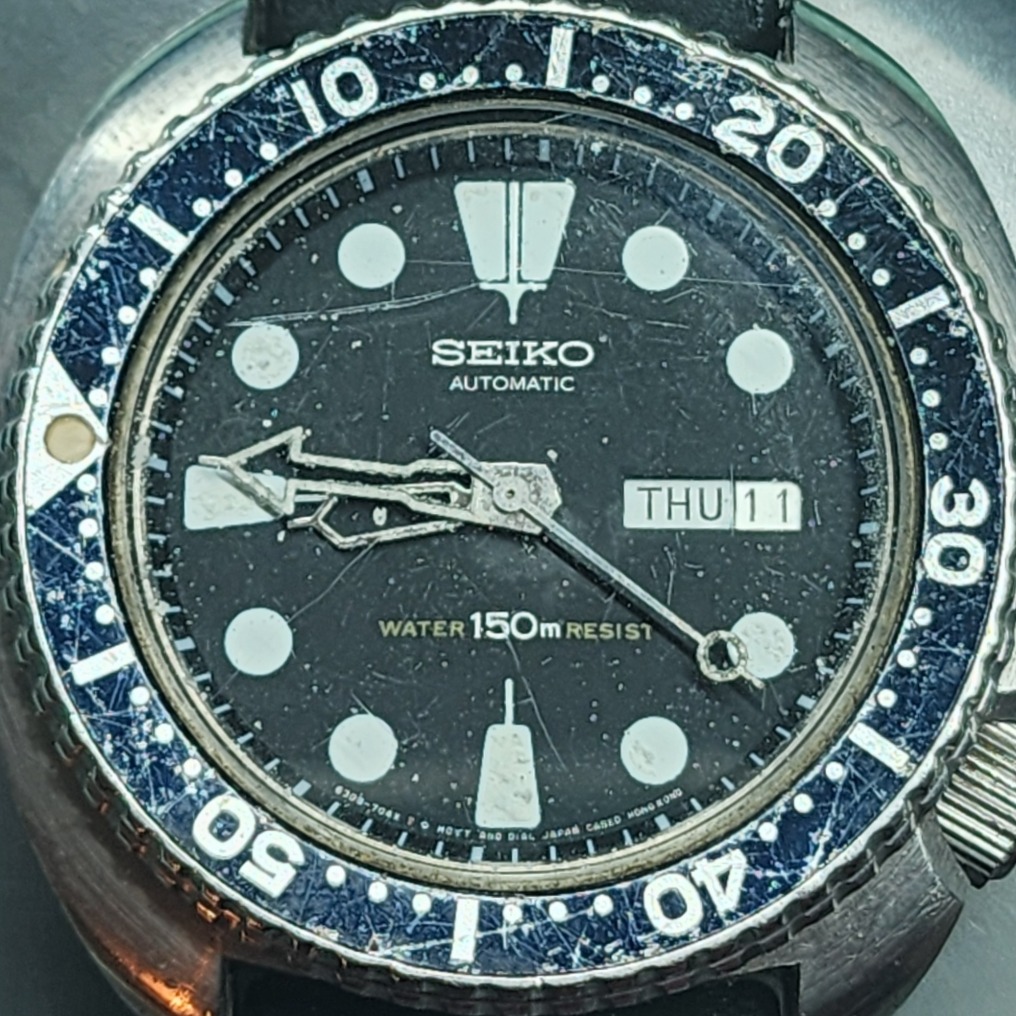

Disassembly confirmed significant lume degradation on both the dial and hands. The dial presented additional complexity, as the applied markers lack defined lume boundaries and required careful control to maintain consistent shape during re-luming. Some residual staining from prior lume degradation remained visible in certain lighting conditions and viewing angles; however, it does not affect legibility or overall dial integrity and is consistent with age-related material interaction rather than surface damage.

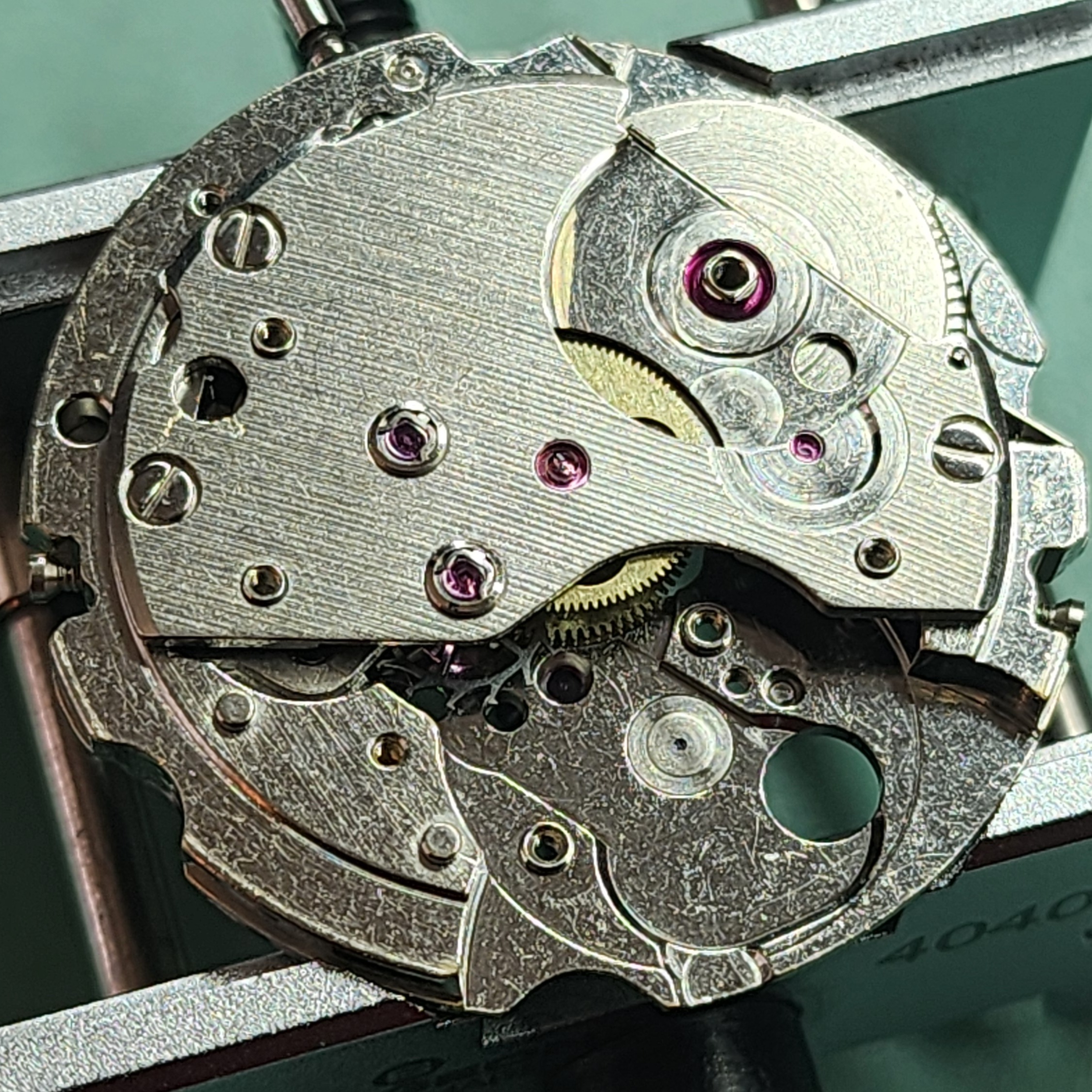

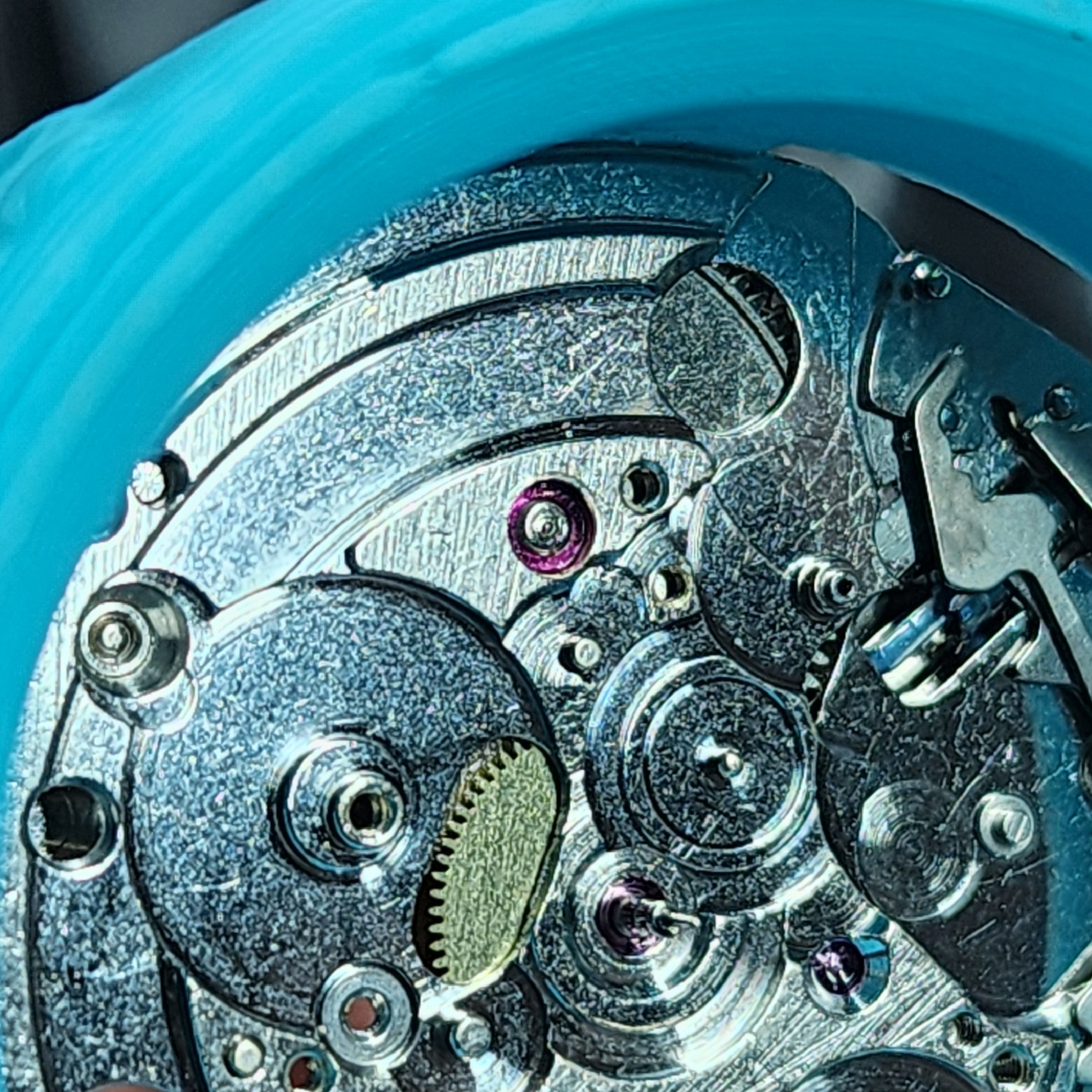

The 6309 is known for barrel arbor wear at its primary load points. These areas were addressed through the installation of two additional jewels—one in the mainplate and one in the bridge. This upgrade required the use of jeweling tools to precisely bore the existing bearing surfaces and press-fit the jewels with controlled depth and alignment to ensure proper endshake and long-term durability. Since this watch was already being upgraded with a hacking mechanism using 6306a components, the decision was made to install the 6306a bridge as well, which incorporates additional functional jewels and complements the overall durability and usability improvements.

A hacking mechanism was added using readily interchangeable 6306a components. The modification integrates cleanly with the existing movement architecture and improves setting accuracy without introducing additional complexity. In practice, this upgrade makes the watch more pleasant to set and use day-to-day while preserving its outward character.
